Fast Electricals is well-known On Grid Solar System Manufacturers in Pune, Suppliers and Dealers in Pune. Our On Grid Solar System solutions are aimed at producing clean electricity and achieve that through direct linkage of our solar power system to the utility grid. We facilitate effective utilization of the sunbeams throughout the day and export the surplus to the grids via net metering. Our on grid solar systems are highly efficient, less expensive to install, and they consume less electricity, which makes them ideal, both in residential, commercial, and industrial setups, no battery is needed.
Main Forms of On-Grid Systems
- Direct On-Grid (Grid-Tied) System: This system is directly connected to the utility grid and uses solar power first, with the grid supplying electricity when solar generation is insufficient. Excess power is exported to the grid through net metering.
- On-Grid System with Net Metering: A bidirectional net meter tracks both imported and exported electricity, allowing users to earn credits for surplus solar power fed back into the grid, reducing monthly electricity bills.
- On-Grid System without Battery Backup: This is the most common and cost-effective on-grid setup, operating only when the grid is available and automatically shutting down during power outages for safety.
- On-Grid System with Limited Battery Backup (Hybrid On-Grid): A hybrid on-grid system includes a small battery bank for essential loads while still being connected to the grid, offering partial backup during outages.

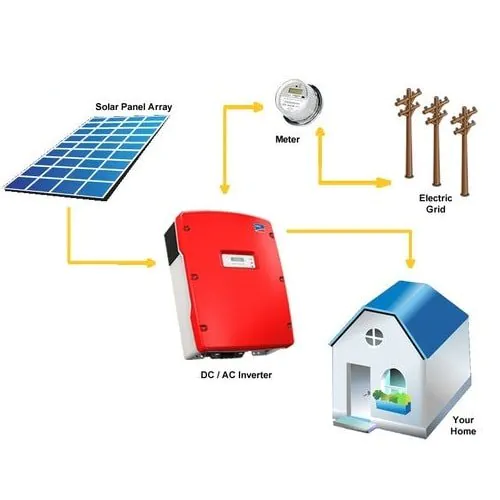

How an On Grid Solar System Works
As leading On Grid Solar System Manufacturers in Pune, we have added here detailed process for this system.
- Energy Generation: Solar panels contain photovoltaic cells that absorb the sunlight and convert it to direct current (DC) electricity. In this way we can generate clean and renewable energy during daylight. The availability of sunshine and quality of panels determine the effectiveness.
- Inverter Conversion: The solar inverter transforms the DC electric power to alternating current (AC) electric power that can be used in the home and business electrical systems. It also loads the solar power to the utility grid to operate safely. This guarantees efficient and easy power consumption.
- Consumption & Power Export: The produced AC power is initially used by loads in the premise. The surplus is automatically sent to the net meter which sends the excess electricity to the grid. This energy that is exported is registered as credits in the power bill.
- Grid Power Import: At times when there is inadequate solar power generation during the night or in case of cloud cover, the system uses power provided by the utility grid as an automatic back-up. This makes power flow uninterrupted and consistent and does not require any manual operation.
Technical Specifications of On Grid Solar System
Being trusted On Grid Solar System Suppliers in Pune; we ensure all systems meet precise technical standards for optimal efficiency and grid compatibility.
| Component |
Parameter |
Details |
| Solar PV Modules |
Type |
Crystalline Silicon (Mono PERC / Polycrystalline) |
| Efficiency |
19–21% (Mono PERC), 16–18% (Poly) |
| Wattage |
330–550 W per module |
| Standards |
IEC 61215 (Performance), IEC 61730 (Safety), IS 14286 |
| Frame |
Anodized aluminium, corrosion-resistant |
| Junction Box |
IP65 rated, with bypass diodes |
| Grid-Tied Inverter (PCU) |
Type |
Transformerless, Grid-Connected |
| Efficiency |
>98% (MPPT included) |
| DC Input Voltage |
200–1000 V, MPPT range supported |
| AC Output |
230/415 V, Single or Three Phase, 50 Hz |
| Grid Synchronization |
Automatic with voltage ±10% & frequency ±3 Hz tolerance |
| Protection & Features |
Anti-islanding, overvoltage/overcurrent protection, remote monitoring, data logging |
| Mounting Structure |
Material |
Hot-dip galvanized steel / Aluminum alloy |
| Design |
Engineered for local wind and snow loads |
| Tilt Angle |
Adjustable as per site latitude for optimum yield |
| Foundation |
RCC / Concrete foundation with J-bolts or anchor fasteners |
| Balance of System (BoS) |
DCDB |
MCBs / Fuses for DC array protection and isolation |
| ACDB |
MCCBs, Isolators, Surge Protection Devices (SPDs) |
| Cables |
UV-resistant, solar-grade, appropriate current & voltage rating |
| Protection |
SPD on both DC & AC sides, earthing provision |
| Performance & Safety |
Islanding Protection |
IEC 62116 compliant |
| Environmental Rating |
Operating temperature: -10°C to 60°C, humidity: up to 95% |
| Standards Compliance |
BIS (IS 14286, IS 16221), CEA regulations, IEC standards (IEC 61215/61730/62109) |
Key Features of On Grid Solar System
As On Grid Solar System Dealers in Pune our strength lies in features that maximize energy yield, enable seamless grid integration, and ensure long-term reliability.
- Net Metering Compatibility: These systems are also synchronized with the utility grid where any surplus electricity that is created can be exported with credit towards the electricity bill.
- High System Efficiency: The components of on-grid systems are of high quality that will guarantee optimal conversion of sunlight to usable electricity.
- Grid-Synchronized Operation: The automatic inverter adjusts itself to grid voltage and frequency providing reliable and safe power supply to the loads.
- Minimal Maintenance Requirement: On-grid solar systems are designed to be reliable and need very minimal maintenance and less effort in operation in the long run.
- Robust Safety & Protection: Surge protection, overload protection, and anti-islanding mechanisms are some of the features attached to the systems to enable safe operation at all conditions.
Applications of On Grid Solar System
As trusted On Grid Solar System Suppliers in Pune, our systems are widely used in homes, offices, industries, and large-scale rooftop solar projects.
- Residential Rooftops: They can be installed in the home and apartments and assist the homeowner in saving money on the electricity bill at the same time they maximize the available space on the rooftop.
- Offices and Commercial Buildings: Solar systems installed on the grid can sustain a large-daytime load of offices and office buildings, reduce the cost of a business, and encourage sustainable operations.
- Industrial Facilities: These systems will enable industries and manufacturing units to augment the grid electricity with clean solar energy to provide a reliable operation and a lower cost of energy.
- Educational Institutions: In schools, colleges and university campuses, solar energy can be used to power up their facilities to improve on sustainability and to do away with the use of traditional electricity.
- Hospitals and Healthcare Centres: Solar On Grid / OFF Grid systems allow hospitals and medical facilities to operate key machines during the daytime, guaranteeing a continuous energy supply to key operations.
Why Choose Us as a On Grid Solar System Manufacturers in Pune?
- Reliable Quality & Performance: We offer the best on-grid solar systems with high efficiency panels and inverters that keep the energy flowing and give high longevity to all projects.
- Tailored Solutions & Expert Support: We are offering tailored solar systems to suit the particular power requirements, with professional advice, easy installation, and technical support.
- Commitment to Sustainability & Savings: Our mission is to cut electricity bills and facilitate the use of clean energy in order to enable our clients not only to realize financial gains but also to be socially responsible.
Fast Electricals is leading On Grid Solar System Manufacturers in Pune, Suppliers and Dealers in Pune. Our mission is to provide effective, trusted and sustainable on-grid solar services to enable our customers to save on energy expenses and achieve a healthier future. Our product quality, skilled installation, and strong safety will guarantee the uninterrupted working process and its future profitability. With our custom made strategy and personal service, it is easy, cheaper, and greener to turn your home, business, and even large scale structures into solar energy. Contact Us to know more about the details.
