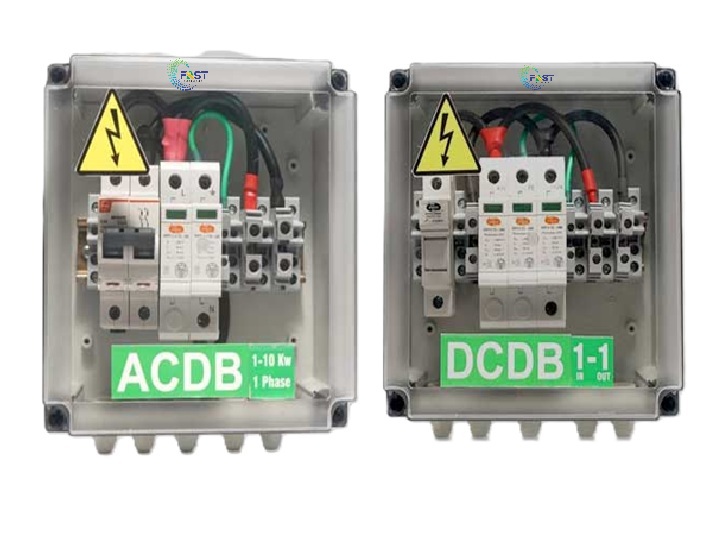

Fast Electricals is well-known Solar ACDB Manufacturers in Pune, Suppliers and Dealers in Pune. Our products are of superior quality and offered as Solar ACDB (Alternating Current Distribution Box) solutions which are aimed at ensuring safe and reliable delivery of solar power in residential, commercial and industrial sectors. Our Solar ACDBs are able to effectively control the movement of the solar inverters to your electrical loads to ensure your system is safeguarded with strong circuit breakers, surge protection devices and isolators. We design our ACDBs to be a long-lasting, secure, and internationally compliant device to properly fit to the solar power installation.
What is Solar ACDB?
A Solar ACDB (AC Distribution Box) is an essential electrical panel used in a solar power system to safely receive AC power from the solar inverter and distribute it to the main electrical panel or utility grid. It provides protection, isolation, and control of AC power by using safety components such as MCBs/MCCBs, isolators, surge protection devices (SPD), and energy meters.
Solar ACDBs protect the solar system and connected loads from overload, short circuit, voltage fluctuations, and surge currents, ensuring safe and reliable operation. They are widely used in on-grid, off-grid, and hybrid solar power systems for residential, commercial, and industrial installations and are designed as per IEC and MNRE standards for electrical safety and long-term performance.
Core Components of a Solar ACDB
To safely distribute the AC power produced by the inverter to electrical loads, a Solar ACDB is used to provide the following key elements which are designed to offer protection and monitoring; all within a weather-proof (IP65) enclosure:
- MCBs/MCCBs: Limit faulty circuit to prevent system overloads and short circuiting, by circuiting them automatically.
- SPDs (Surge Protecting Devices): Redirect large electrical impulses including lightning to earth in order to protect electronics.
- Contactors: Allow automatic switching of the inverter and grid connection to allow smooth flow of the power.
- Energy Meters: Smart grid electricity monitoring assists in tracing the performance and energy consumption of the system.
- Voltage Indicators: The lights (LED lamps) indicate the state of AC phases so that visual monitoring can be easily done.
- Relays: Install voltage protection devices and earth fault relays in order to improve the safety of the system.
- Connectors: Strong terminals and connectors provide safe and sure wiring linkages.
Key Types of Solar ACDB by Configuration & Application
As reliable Solar ACDB Manufacturers in Pune, we offer different ACDB types designed to suit various solar system capacities and installation requirements.
- Single Inverter ACDB: This one is used in the case of solar systems that have one inverter. It handles the AC of inverter in a safe way that gives the much needed protection by means of MCBs, SPDs and indicators. It suits domestic or small business applications.
- Multi-Inverter ACDB (Combiner ACDB): This ACDB is used in large solar systems and it will combine the outputs of more than one inverter into one distribution point. It promotes 2-in-1- out (or more) configurations, which guarantee a centralized protection and effective power management.
- ACDB LT Panels: Large-scale solar power plants (typically 1MW or above) are powered out of large-capacity ACDBs. They incorporate a series of inverters in the same panel, which is guaranteed to provide hardy distribution and system availability in industries.
- ACDB with Metering: These ACDBs have embedded energy meters (like Class 1) to check the generation of electricity at the right level. This option allows the owners of the system to monitor performance make use of energy efficiently and ensure the efficiency of operations.
- ACDB with Communication: These ACDBs support the use of smart monitoring systems because they have remote monitoring and data logging communication ports. They can be used in sophisticated solar systems that need real-time performance monitoring and analytics.
Technical Specifications of Solar ACDB
Being top Solar ACDB Suppliers in Pune, we define precise technical specifications to ensure electrical safety and system compatibility.
| Parameter |
Specification / Range |
| Voltage |
230V AC (Single-Phase) / 415V AC (Three-Phase) |
| Frequency |
50 Hz / 60 Hz |
| Current Rating |
32A, 40A, up to 250A+ (depending on system size) |
| Power Capacity |
1 kW – 40 kW+ (varies by system) |
| Enclosure (IP Rating) |
IP65 (dust and water resistant, suitable for outdoor installations) |
| Material |
UV-protected ABS, Polycarbonate; Mild Steel for heavy-duty versions |
| Key Components |
MCB/MCCB, SPD, Contactor, Energy Meter |
| Features |
Safety, isolation, grid integration, protection from surges and overloads |
Key Features of a Solar ACDB
As Solar ACDB Dealers in Pune our expertise is reflected in features that enhance protection, durability, and ease of maintenance.
- Reliable Protection: It has MCBs, MCCBs, SPDs and relays as part of its electronic systems which protect the solar system against overloads, short circuits, and voltage surges.
- Durable and Weather proof Enclosure: It is enclosed in IP65-rated cases of ABS, polycarbonate (or mild steel) capable of operating in the outside and harsh environment.
- Easy Monitoring: 800V Solar ACDB has energy meters and LED phase indicators, to be provided as real time system status, performance monitoring and simple troubleshooting.
- Seamless Grid Integration: Solar AC Distribution Box is programmed to enable easy exchange between solar inverters and utility grid using contactors to maintain the supply of power.
- Modular & Scalable Design: Solar ACDB Panel enables the multi-inverter system to expand, the replacement of the parts to be easy and adaptation to the system size and capacity.
Applications of a Solar ACDB
As trusted Solar ACDB Suppliers in Pune, our ACDB units are widely used across residential, commercial, industrial, and solar power installations.
- Residential and Commercial Rooftops: It is safe and transmits the AC power created by the use of solar energy to homes and business structures keeping the fragile appliances intact and maintaining steady power consumption.
- Industrial Solar Systems: Solar ACDB Box supplies electricity to factories and huge commercial complexes, which offer high-quality overload protection and efficient power distribution.
- Utility-Scale Solar Farms: It is the central AC distribution and protection of large ground-mounted solar arrays, which supports the inverters with large capacity and ensures reliability of the system.
- Hybrid & Off-Grid Systems: It allows switching between solar energy, grid connection and battery storage safely, which is vital to standalone or hybrid solar systems.
- Grid-Tied Solar Installations: It is the key to the good connection between the solar inverter and the utility grid that provides the proper synchronization of the running power.
Why Choose Us as a Solar ACDB Manufacturers in Pune?
- Reliable and High-Quality Solutions: Each Solar ACDB is constructed using high-quality sub-products, strong covers and the correct engineering to offer durability and system security.
- Tailored Solutions for Every Project: We tailor ACDBs to the size of systems, inverter size, and application needs, and deliver a smooth integrative model, which is highly functional.
- Expert Support and Guidance: We deal with installation, system setups as well as maintenance and provide professional guidance that will help to maximize the efficiency and to make sure the solar system can operate safely and efficiently.
Fast Electricals is prominent Solar ACDB Manufacturers in Pune, Suppliers and Dealers in Pune. Our vision is to offer premium Solar ACDB solutions that are safe, reliable, and efficient in power distributions to every class of solar systems. We assist in getting the best out of solar installations by ensuring a long life cycle through robust materials, enhanced security and convenience through simple surveillance. Our customized solutions and professional services encourage the customers to take a bold step towards using solar power with the assurance that the efficiency and safety of their systems will be preserved. Contact with us for more details.
